Aire~IVF®
INSPIRED BY PATIENTS. POWERED BY SCIENCE.
Scientifically Proven
to Improve IVF Outcomes

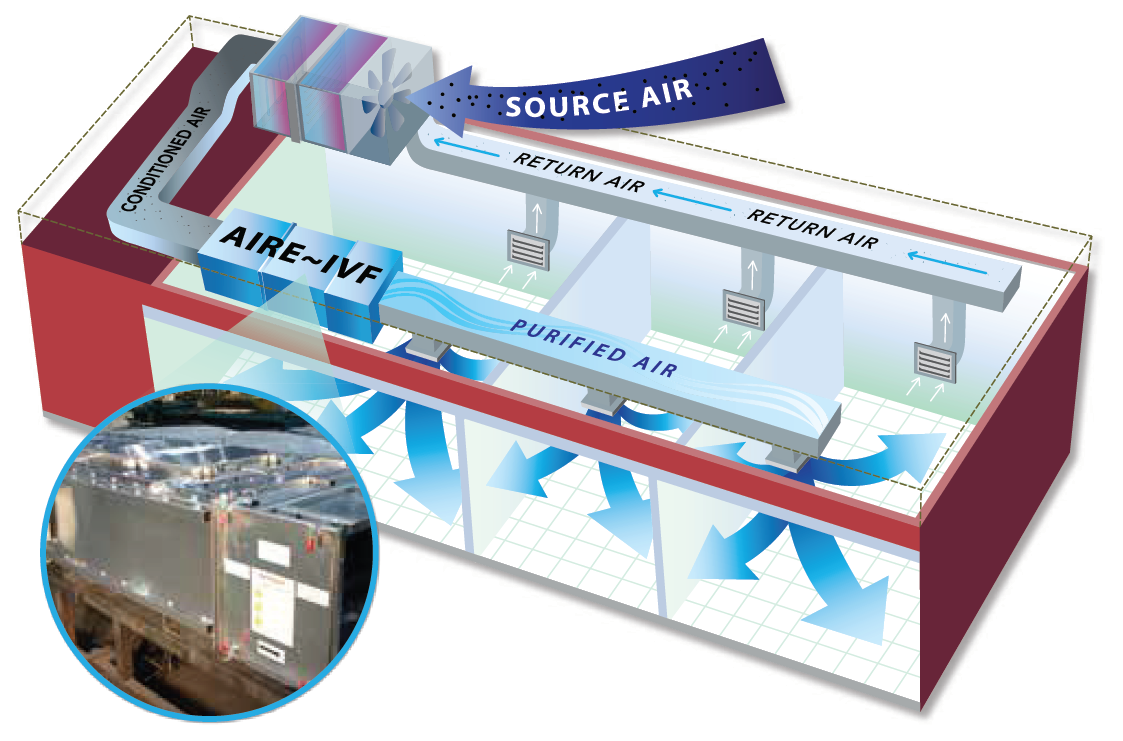

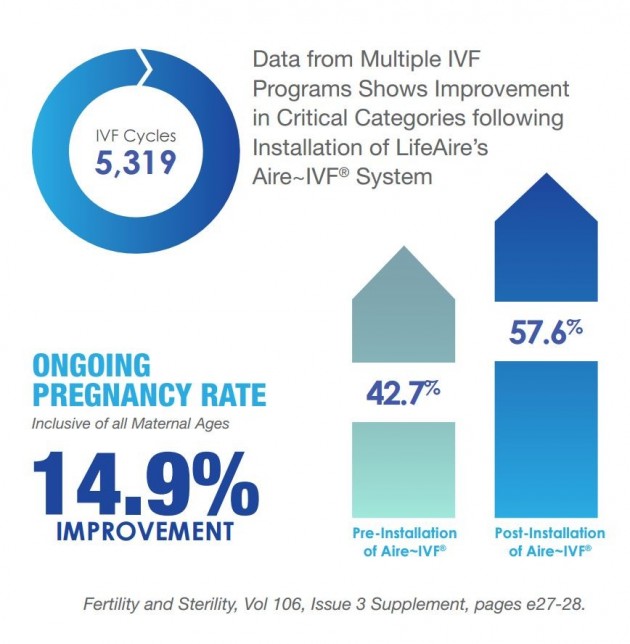

Eliminating all known airborne pathogens that can affect healthy embryogenesis, LifeAire System’s Aire~IVF is clinically proven to significantly improve clinical outcomes. Its patented, multi-staged molecular media and UV technologies combine to neutralize up to 99.99% of biological and chemical contaminants within source and return air—in a single pass through the system.
No other system, in-room or in-duct, has the capability to continuously purify air at the levels guaranteed by LifeAire.
Whether part of new construction or integrated into an existing facility, Aire~IVF features an indoor design, as well as an all-weather option for rooftop installations. The system is available in three sizes to accommodate air volume outputs of 1000, 2000 and 4000 CFM.
Design Specification Objectives
*Total VOCs: <5 ppb
Biologicals: <1 cfu/m3
Particulates: ISO Class 6
Ozone: None
Technical Information
Supply Air Volume: maximum 1000 CFM
Pressure Drop: 1.5” w.g., both at 1000 CFM
Size: 11’10” length; 2’3” width; 2’7” height
Weight: 600 lbs (272 kg) including all components
LifeAire Systems contributes 2ºF temperature rise to air stream
Power: 120/208V, 3W, 2P, 20A Dedicated Circuit
Supply Air Volume: maximum 2000 CFM
Pressure Drop: 1.5” w.g., both at 2000 CFM
Size: 11’10” length; 4’4” width; 2’7” height
Weight: 1100 lbs (500 kg) including all components
LifeAire Systems contributes 2ºF temperature rise to air stream
Power: 120/208V, 3W, 2P, 20A Dedicated Circuit
Supply Air Volume: maximum 4000 CFM
Pressure Drop: 5.5” w.g.– 6.0” w.g., at 4000 CFM
Size: 13’6.5” length; 4’4” width; 2’7” height
Weight: 1620 lbs (735 kg) including all components
LifeAire Systems contributes 2ºF temperature rise to air stream
Power: 120/208V, 3W, 2P, 30A Dedicated Circuit
